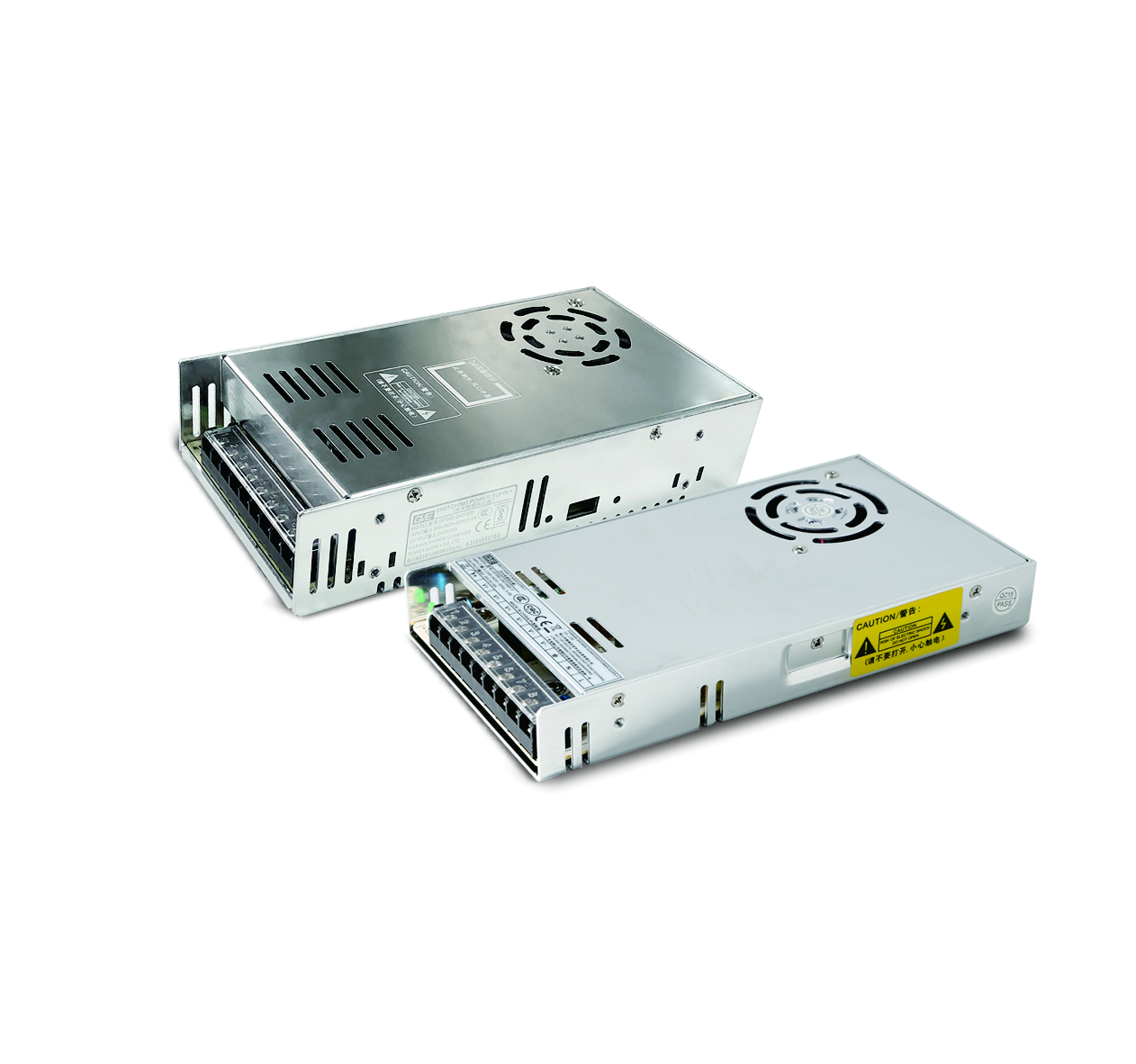

GP360-XXXYYYY-F/ GP360-XXXYYYY
Input:
200-240VAC 50/60Hz 5.0A
Dimension:
215*115*30mm/215*115*50mm

Product Parameters

Features:
1. High conversion efficiency (energy efficiency VI)
2. Protection: OCP, OVP, OTP
3. EMC regulatory certification
4. RoHS&REACH
5. Support customized power supply

Output:
Voltage 12.0-14.0V 14.1-18.0V 18.1-32.0V 32.1-38.0V 38.1-55.0V
Current 0.01-30.0A 0.01-24.0A 0.01-18.0A 0.01-11.0A 0.01-8.5A
Power max 360W 360W 360W 360W 360W



Safety approvals
GB4706.1-2005,GB4943.1-2011,EN62368,IS13252
EMC
GB17625.1-2012,GB4343.1-2018,GB/T4343.2-2009,GB/T17625.2-2007,GB/T9254-2018 CLASS A
