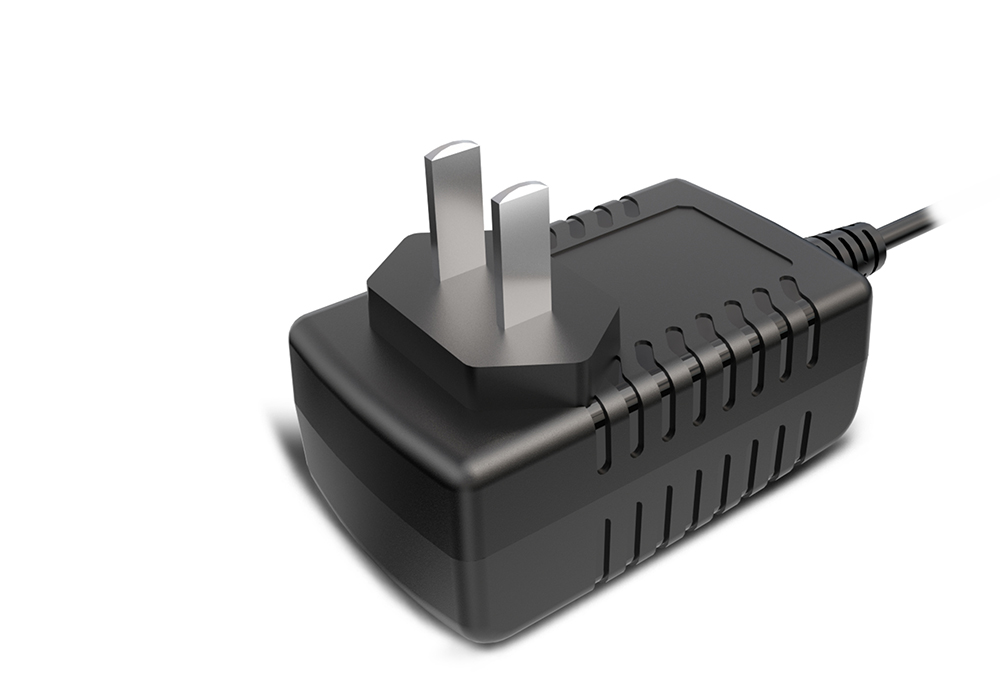

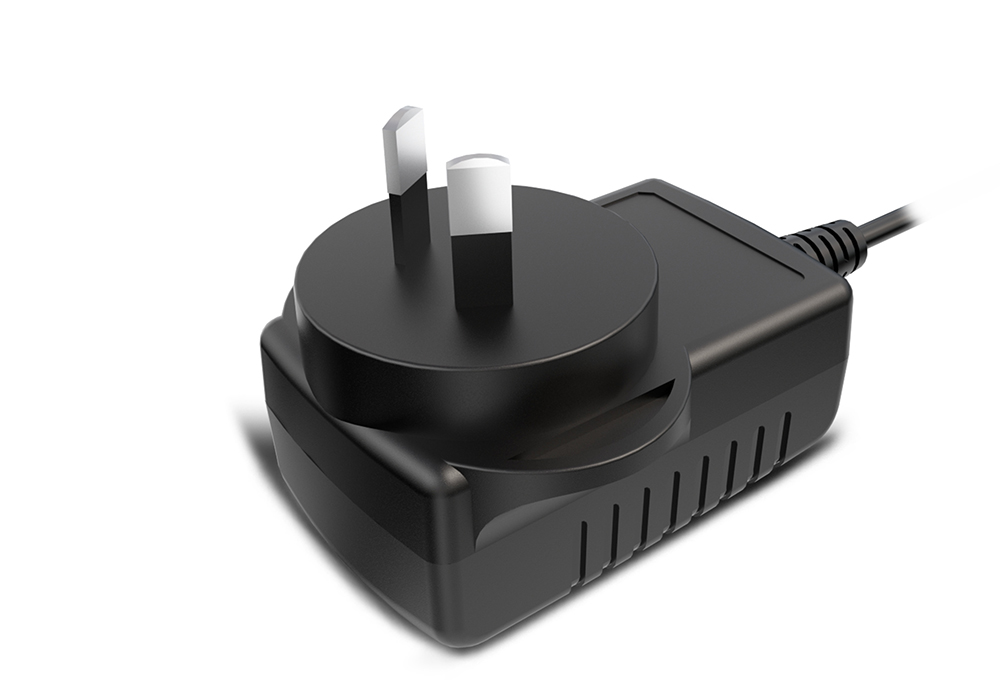

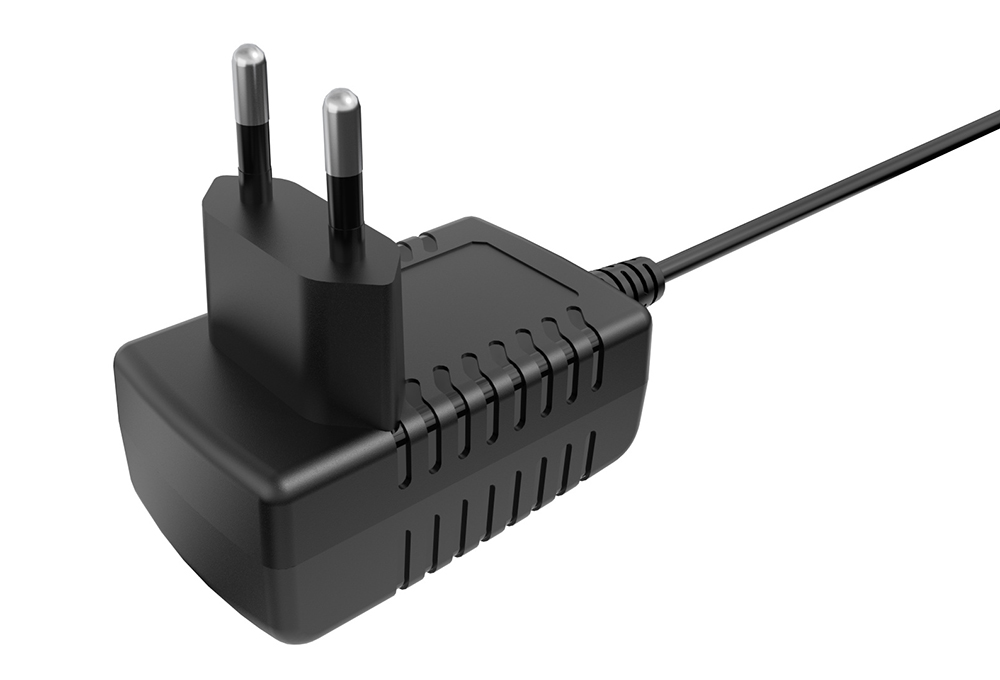

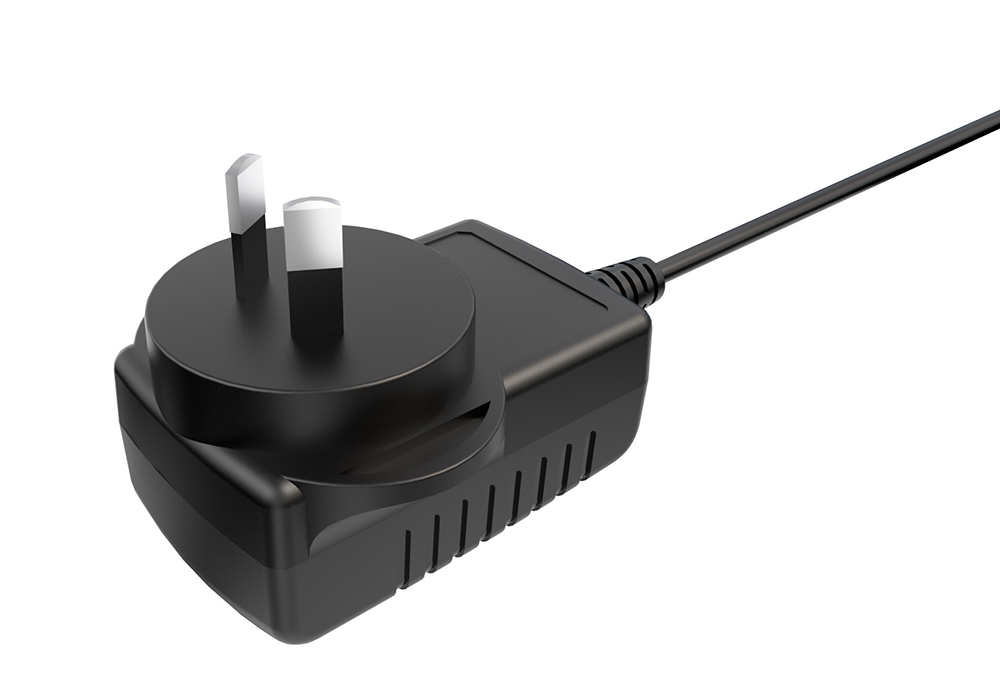

GM16-XXXYYY-ZU
Input:
100-240VAC 50/60Hz 0.5A

Dimension:
65.2*39*30mm


Product Parameters
Features:
1. High conversion efficiency (energy efficiency VI)
2. Protection: OCP, OVP, OTP
3. EMC regulatory certification
4. RoHS&REACH
5. Support customized power supply

Output:
Voltage 4.0-7.0V 7.1-15.0V 15.1-27.0V 27.1-38.0V
Current 0.01-2.5A 0.01-1.7A 0.01-0.9A 0.01-0.55A
Power max 12.5W 15.3W 16.1W 16.1W


Safety approvals
GB4943.1-2011,GB8898-2011,GB4706.1-2005,EN62368,IEC60950,EN61558,K60950,AS/NZS60950,AS/NZS61558,UL62368,UL60950
EMC
GB17625.1-2012,GB/T9254-2008,GB/T13837-2012,GB/T17625.1-2007,GB4343.1-2018,EN55032,EN55035,EN61000,KN-32/35,FCC Part 15,AS/NZS

CISPR32,AS/-zS CISPR 14

DC connecter:
