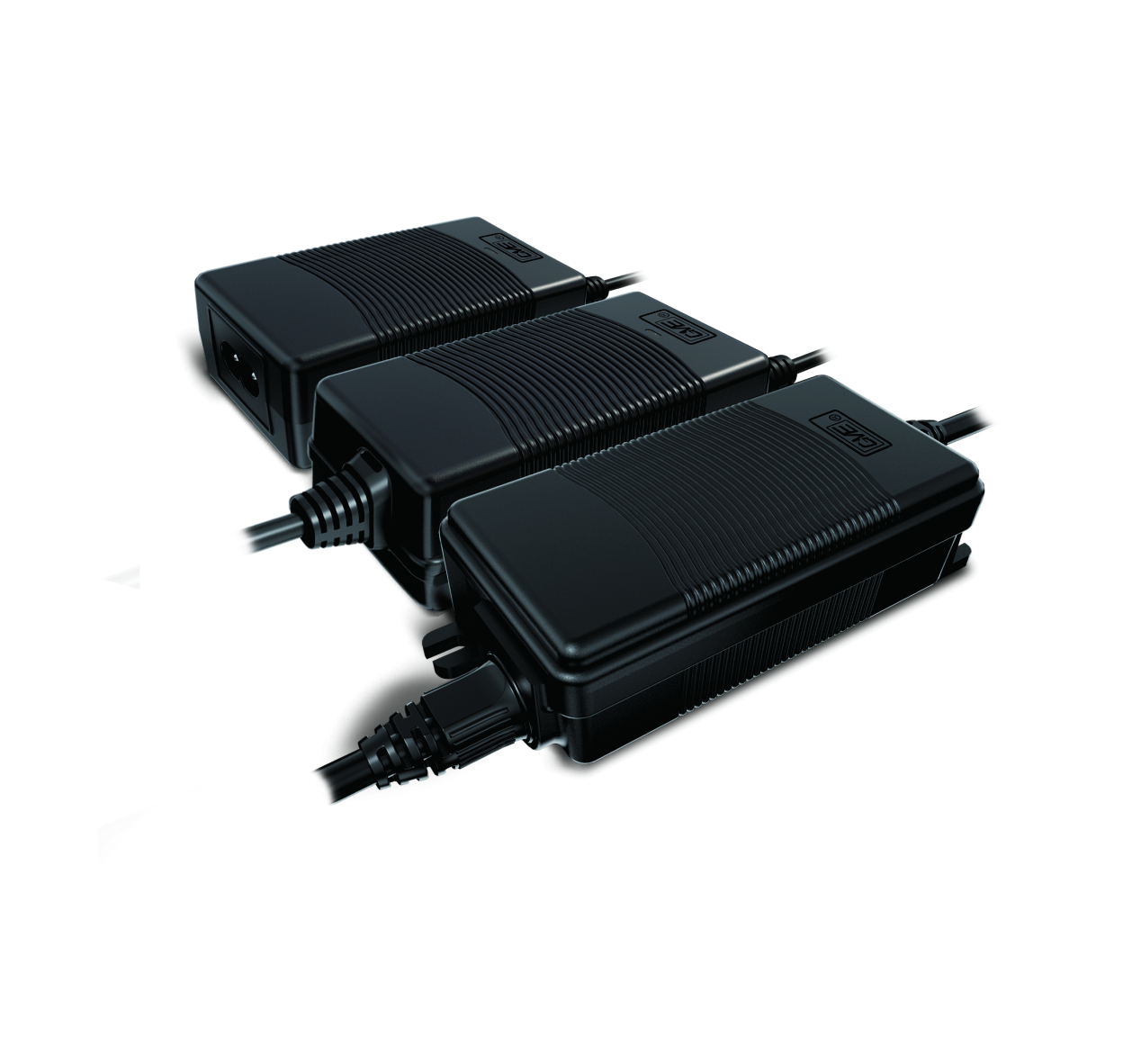

GVE-High Conversion Efficiency Desktop Power Adapter-GMA25
Input:
100-240VAC 50/60Hz 1.0A

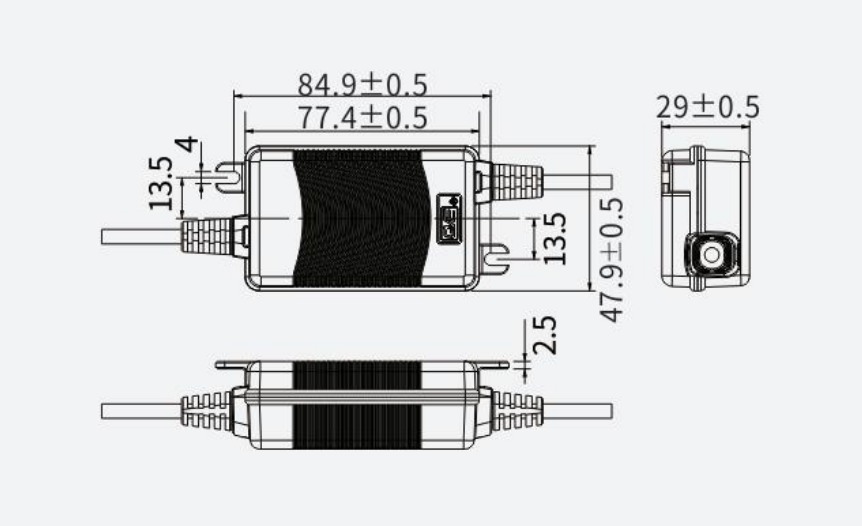

Dimension:
77.4*47.9*29mm(charger)/
82*44*28.5 mm
Send inquiry

Product Parameters
Features:
1. High conversion efficiency (energy efficiency VI)
2. Protection: OCP, OVP, OTP
3. EMC regulatory certification
4. RoHS&REACH
5. Support customized power supply

Output:
Voltage 4.0-6.9V 7.0-10.9V 11.0-15.9V 16.0-21.9V 22.0-30.0V
Current 0.01-3.2A 0.01-2.8A 0.01-2.1A 0.01-1.6A 0.01-1.2A
Power max 18.0W 25.2W 25.2W 28.8W 28.8W




Safety approvals
GB4943.1-2011,GB8898-2011, GB4706.1-2005, GB19510.1-2009,EN61347,EN62368,IEC60950,EN61558,K60950,UL62368,UL1310,AS/NZS 61558,AS/NAS 62368
EMC
GB17625.1-2012, GB/T9254 2008, GB/T13837-2012, GB/T17625.1-2007, GB4343.1-2018,EN55014,EN55032,EN55035,EN61000,KN-32/35,FCC Part 15, AS/NZS CISR 32,AS/NZS CISPR 14

DC connector
