GM98-XXXYYY-ZU
Input:
100V-240VAC 50/60Hz 2.5A ,200-240VAC 50Hz 2.5A

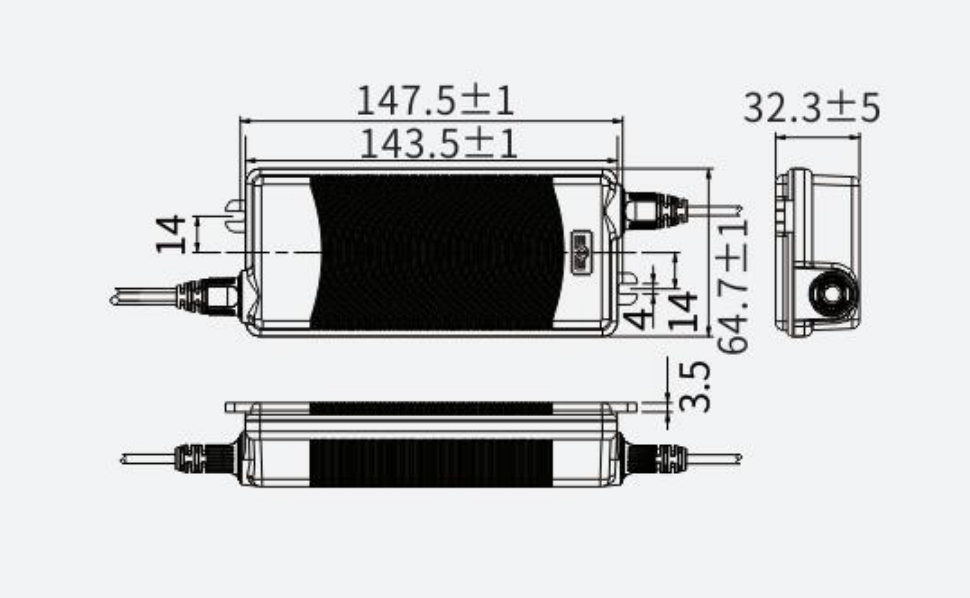

Dimension:
143.5*64.7*32.3 mm/141.2*61.4*31.2mm

Product Parameters
Features:
1. High conversion efficiency (energy efficiency VI)
2. Protection: OCP, OVP, OTP
3. EMC regulatory certification
4. RoHS&REACH
5. Support customized power supply

Output:
Voltage 9.0V-15.0V 15.1V-21.0V 21.1V-30.0V 30.1V-40.0V 40.1V-54.0V
Current 0.01-7A 0.01-5A 0.01-4A 0.01-2.8A 0.01-2.1A
Power max 90W 90W 96W 100.8W 100.8W



Safety approvals
GB4943.1-2011, GB8898-2011, GB4706.1-2005 ,EN62368,1EC60950, EN61558, K60950,J62368 J61558,UL 62368,IS 13252, AS/NZS61558, AS/NZS62368.
EMC
GB17625.1-2012,GB/T9254- 2008,GB/T13837-2012,GB/T17625.1-2007,GB4343.1-2018,EN55032,EN55035, EN55014,EN61000,KN-32/35,FCC Part15

DC connector
