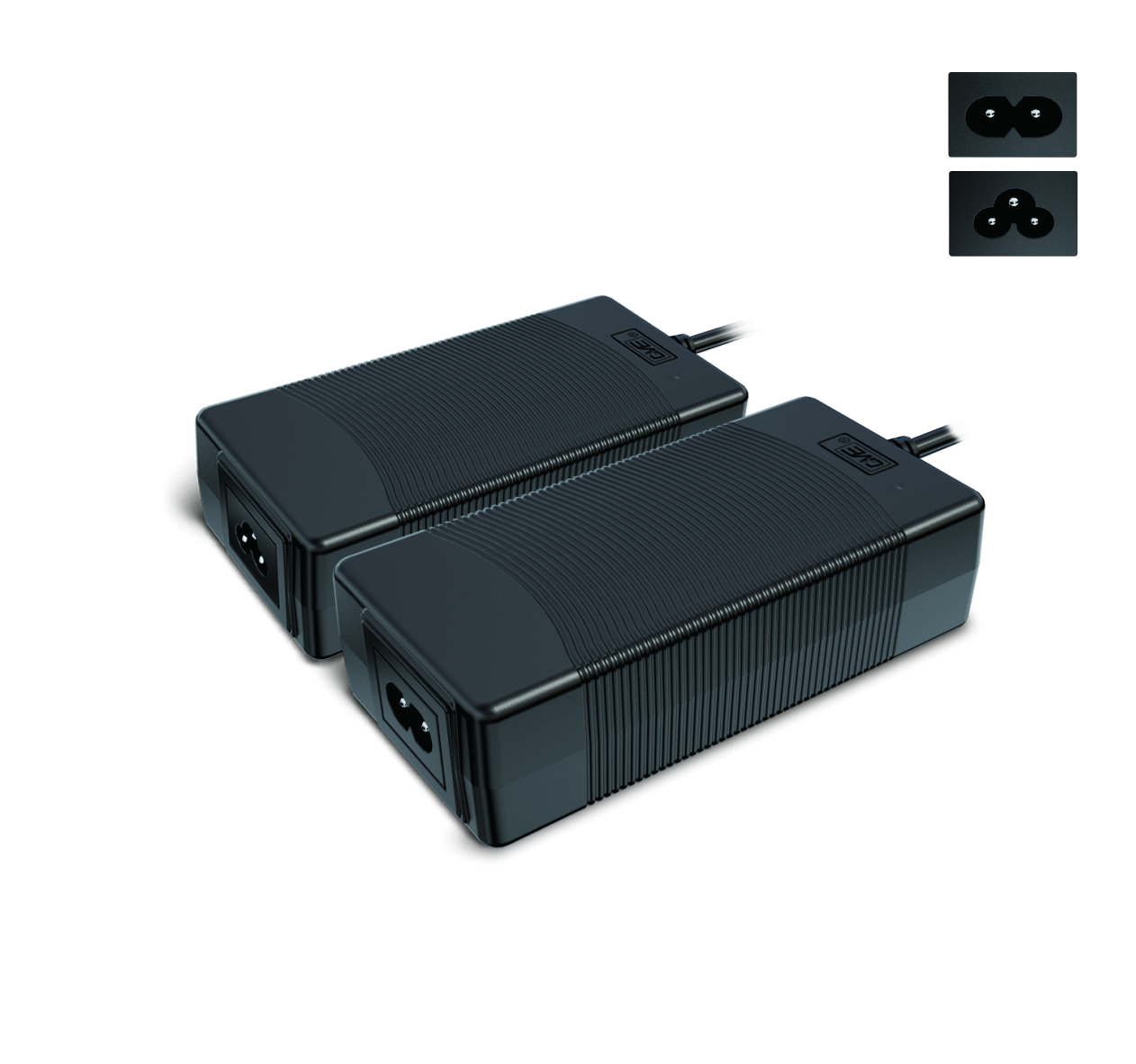

GVE-Overload Protection Desktop Power Adapter-GM65
Input:
100-240VAC 50/60Hz 2.0A

Dimension:
98.5*46.8*29.2mm
Send inquiry

Product Parameters
Features:
1. High conversion efficiency (energy efficiency VI)
2. Protection: OCP, OVP, OTP
3. EMC regulatory certification
4. RoHS&REACH
5. Support customized power supply

Output:
Voltage 8-16.9V 17.0-23.0V 23.1-35.0V 35.1-42.0V 42.1-55.0V
Current 0.01-5.0A 0.01-3.86A 0.01-2.75A 0.01-2.1A 0.01-1.58A
Power max 63W 65.7W 66W 75.6W 76W



Safety approvals
GB4943.1-2011,GB8898- 2011,GB4706.1-2005,EN62368,IEC60950,EN61558,K60950, J60950,J61558,UL62368 ,UL60950,UL1310,AS/NZS61558, AS/NZS-60950, AS/NZS60065,IS 13252
EMC
GB17625.1-2012,GB/T9254-2008,GB/T13837-2012,GB/T17625.1-2007,GB4343.1-2018,EN55032, EN55014, EN55024, EN61000,KN-32/35,FCCPart 15

DC connector


Can do constant current, constant voltage and turn signal indication (charger)
