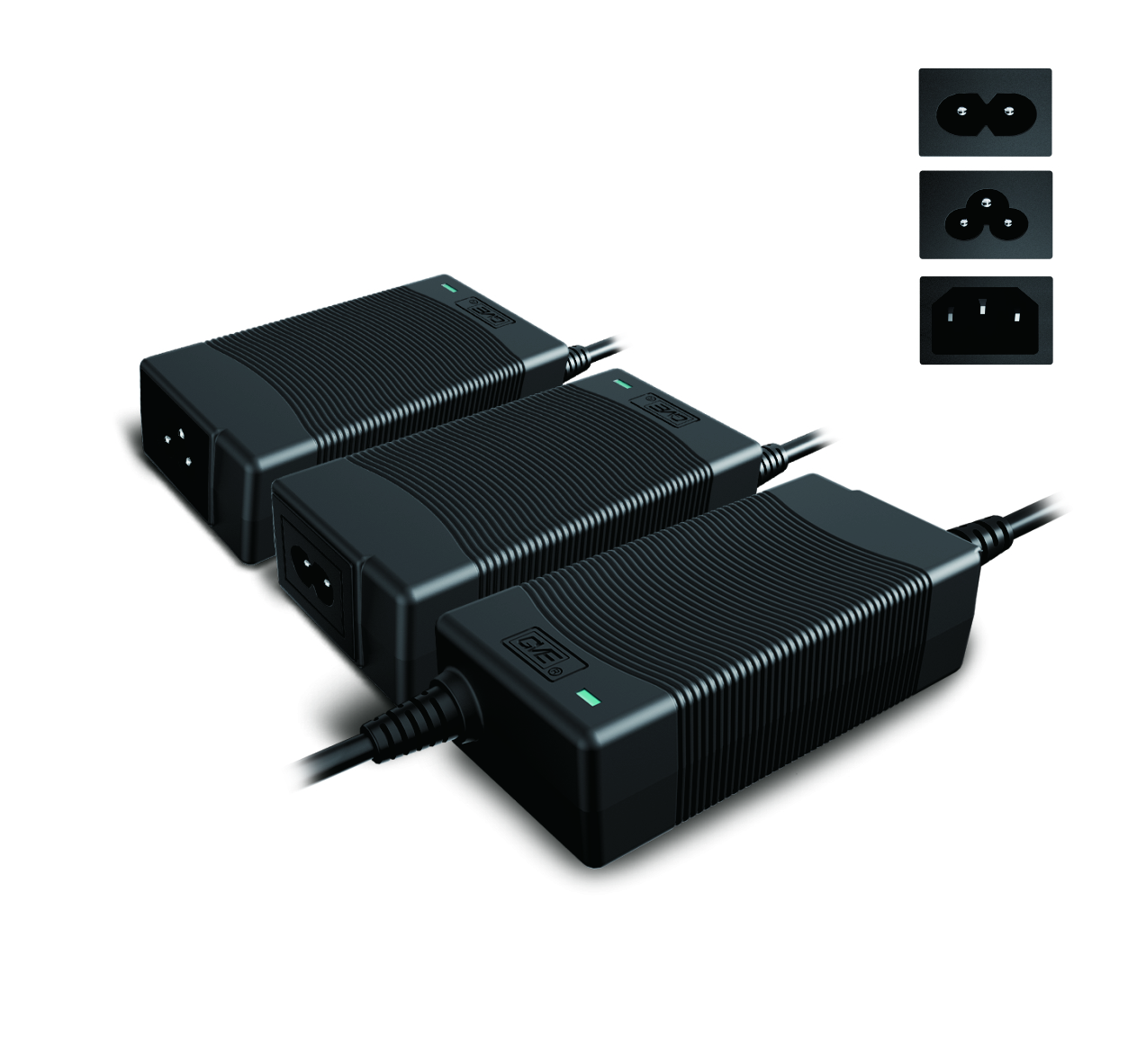

GM53-XXXYYY-ZU
Input:
100-240VAC 50/60Hz 2.0A

Dimension:
100.2*50*30mm

Product Parameters
Features:
1. High conversion efficiency (energy efficiency VI)
2. Protection: OCP, OVP, OTP
3. EMC regulatory certification
4. RoHS&REACH
5. Support customized power supply

Output:
Voltage 5-7.9V 8.0-17.0V 17.1-27.0V 27.1-40.0V 40.1-55V
Current 0.01-6.0A 0.01-5.0A 0.01-2.75A 0.01-1.8A 0.01-1.2A
Power max 39W 51W 52.8W 52.8W 52.8W



Safety approvals
GB4943.1-2011, GB8898-2011, GB4706.1-2005, EN62368, IEC60950, EN61558,K60950, J62368,J61558,UL62368 ,AS/NZS61558, AS/NZS62368, IS13252
EMC
GB17625.1-2012,GB/T9254-2008,GB/T13837-2012,GB/T17625.1-2007,GB43-43.1-2018, EN55032,EN55014,EN55024,EN55035,EN61000,KN-32/35,FCC Pa-rt 15, AS/NZS CISPR 32,AS/NZS CISPR 14

DC connector
