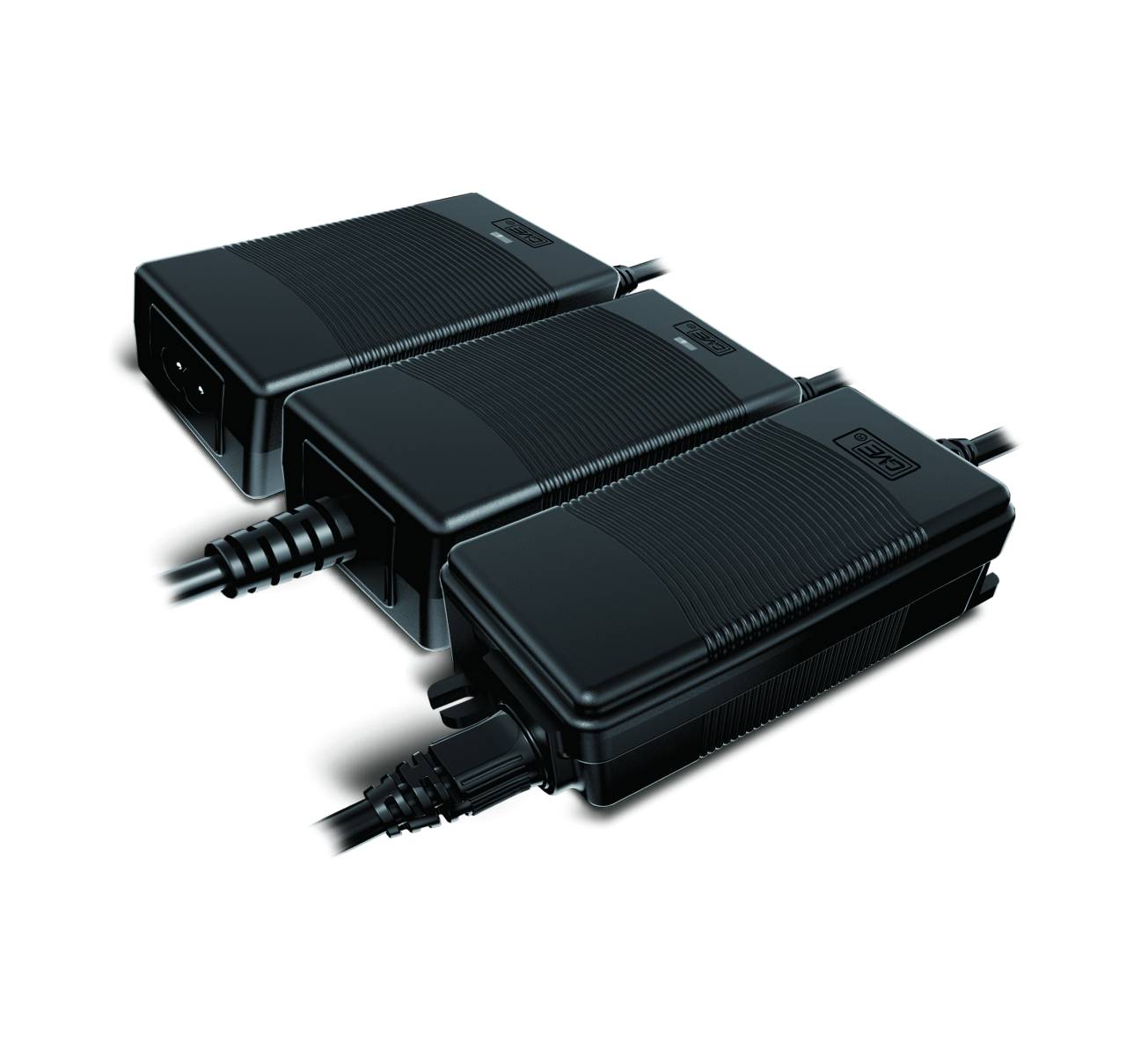

GVE-42W Desktop Power Adapter-GM42
Input:
100-240VAC 50/60Hz 1.5A

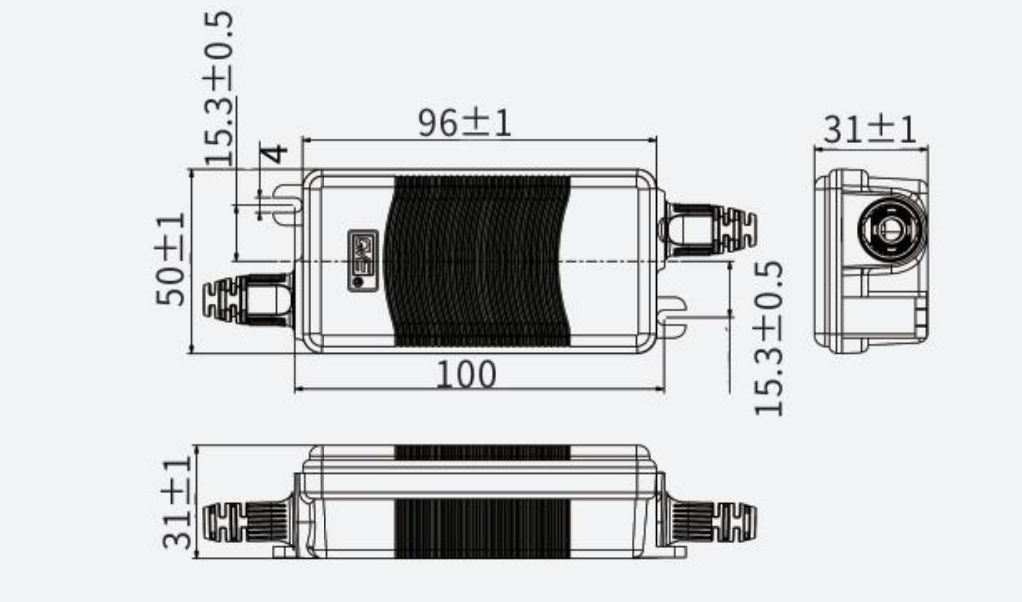

Dimension:
87.8*45.2*30mm/82.4*47.9*30.7mm/96*50*31mm


Send inquiry

Product Parameters
Features:
1. High conversion efficiency (energy efficiency VI)
2. Protection: OCP, OVP, OTP
3. EMC regulatory certification
4. RoHS&REACH
5. Support customized power supply

Output:
Voltage 5-8.0V 8.1-11.0V 11.1-16.9V 17.0-32.0V 32.1-55.0V
Current 0.01-5.0A 0.01-4.0A 0.01-3.5A 0.01-1.75A 0.01-0.87A
Power max 25W 36W 42W 42W 42W



Safety approvals
GB4943.1-2011, GB8898 -2011, GB4706.1-2005, EN62368, IEC60950,EN61558,K60950, J60950, J60065, J61558,UL62368,UL 60950,UL1310, AS/NZ S61558,A-S/NZS 60950, AS/NZS60065,CNS13438
EMC
GB17625.1-2012,GB/T9254 2008,GB/T13837-2012,GB/T17625.1-2007,GB434-3.1-2018,EN55032,EN55035,EN55014,EN55024,EN61000, KN3- 2/35,FCC Part15

DC connector
