GM250-XXXYYYY-ZU
Input:
200-240VAC 50/60Hz 3.5A

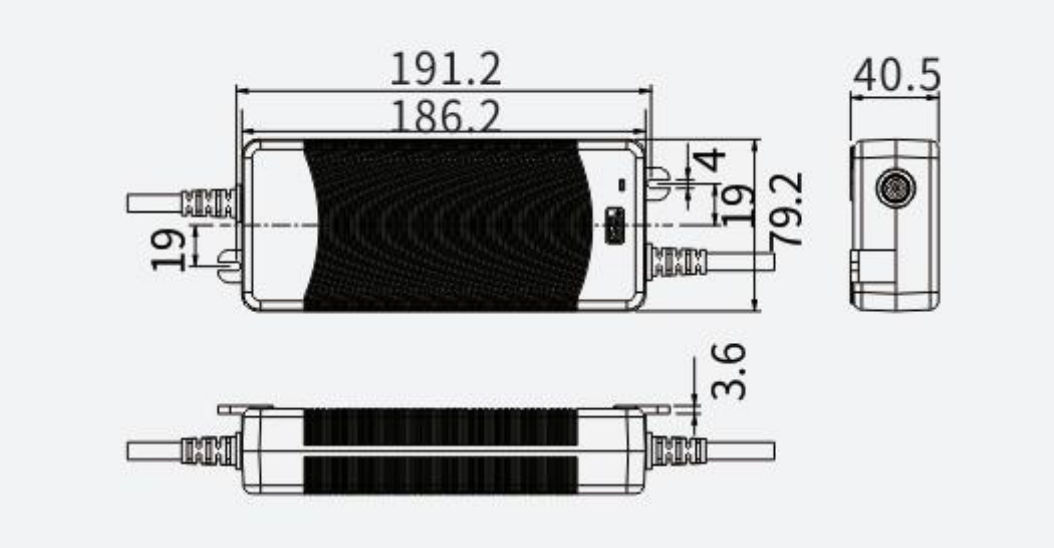

Dimension:
186.2*79.2*40.5mm

Product Parameters
Features:
1. High conversion efficiency (energy efficiency VI)
2. Protection: OCP, OVP, OTP
3. EMC regulatory certification
4. RoHS&REACH
5. Support customized power supply

Output:
Voltage 12-14.9V 15.0-23.0V 23.1-35.0V 35.1-47.0V 47.1-55.0V
Current 0.01-13.0A 0.01-12.0A 0.01-10.0A 0.01-7.0A 0.01-5.48A
Power max 180W 200W 240W 252W 252W



Safety approvals
GB4943.1-2011, ,GB4706.1-2005, EN61558,IS13252
EMC
GB17625.1-2012,GB/T9254-2008,EN55014

DC connector
