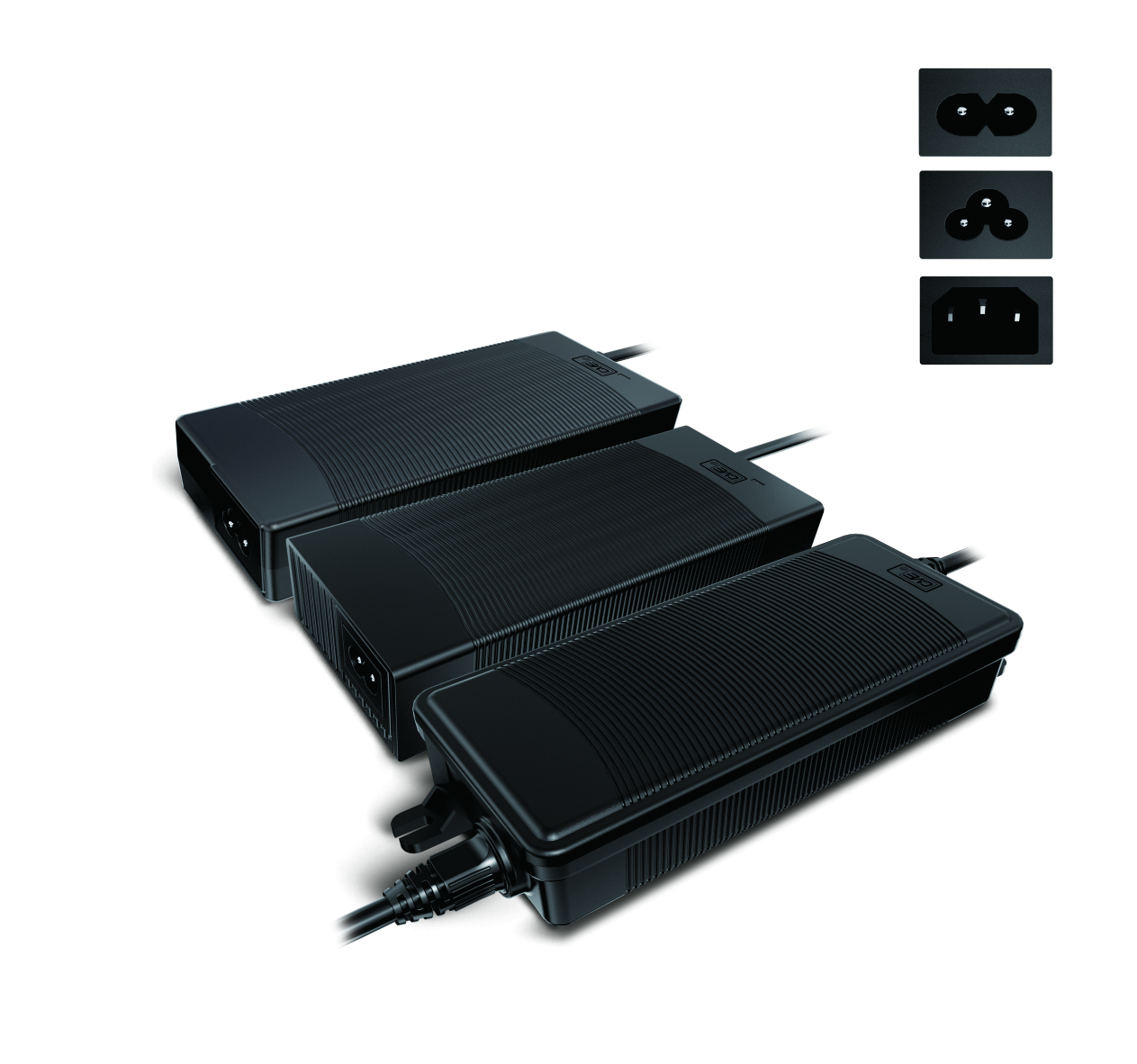

GM180-XXXYYY-ZU/GE180-XXXYYY-ZU
Input:
200-240VAC 50/60Hz 2.5A

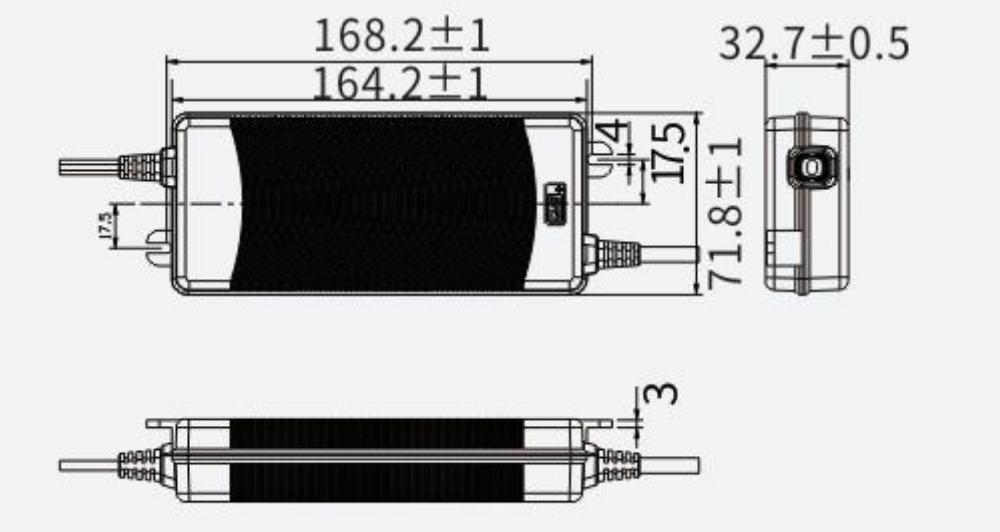

Dimension:
161*68.4*32.5mm/164.2*71.8*32.7mm

Product Parameters
Features:
1. High conversion efficiency (energy efficiency VI)
2. Protection: OCP, OVP, OTP
3. EMC regulatory certification
4. RoHS&REACH
5. Support customized power supply

Output:
Voltage 12.0-15.5V 15.6-23.0V 23.1-35.0V
Current 0.01-12.5A 0.01-9.50A 0.01-6.35A
Power max 60W 65W 65W



Safety approvals
GB4943.1-2011,GB4706.1-2005

EMC
GB17625.1-2012,GB/T9254-2008,GB/T17625.1-2007.GB4343.1-2008

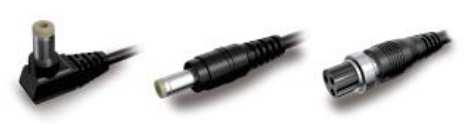

DC connector
