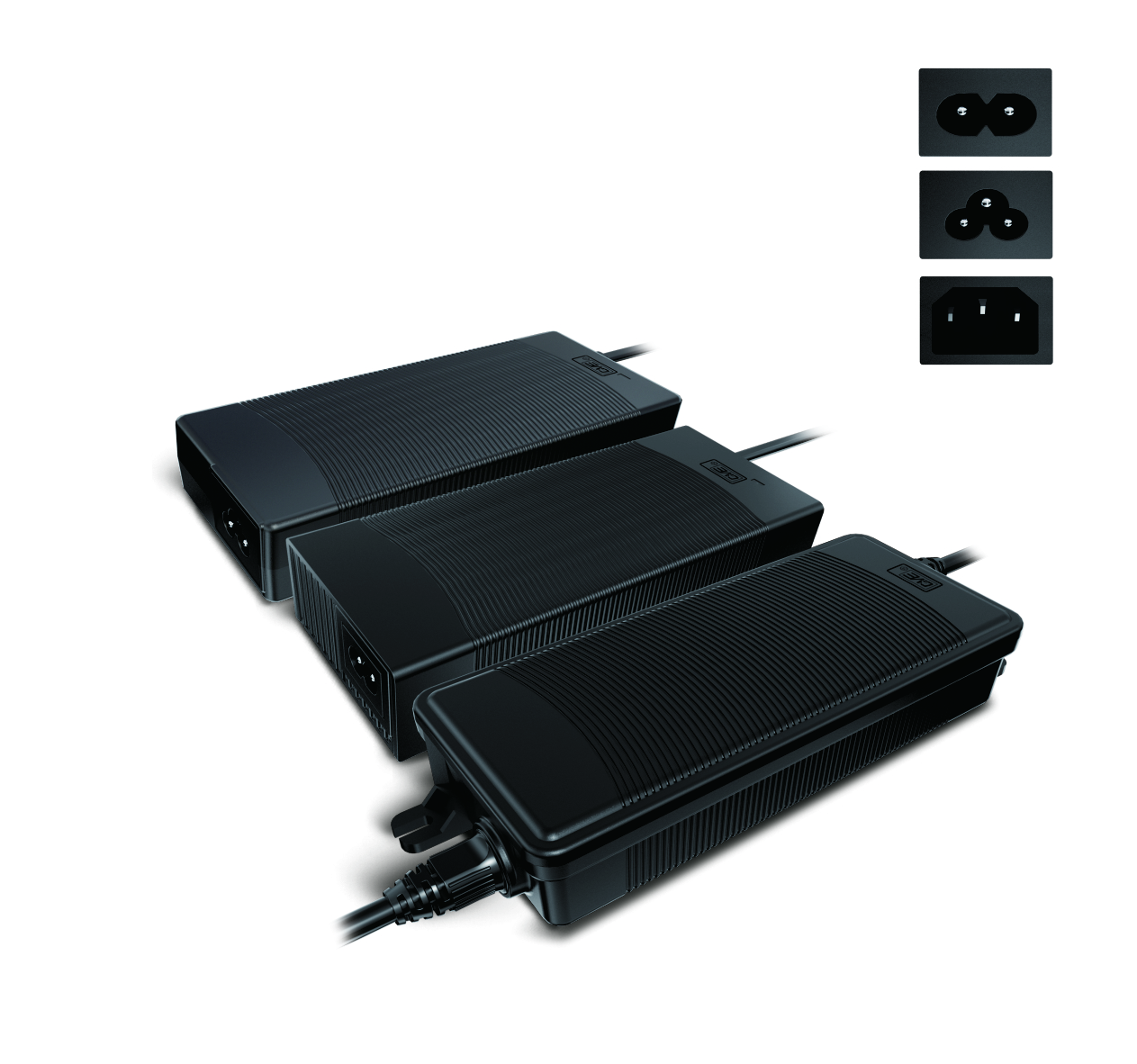

GVE-Durable Multi-Voltage Charger-GM152/GE152
Input:
100-240VAC 50/60Hz 2.5A

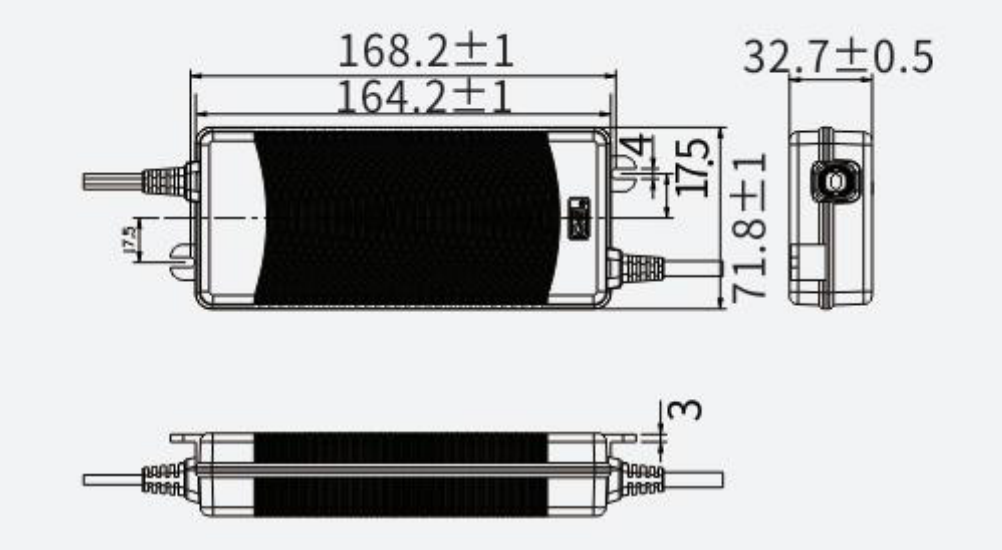

Dimension:
161*68.4*32.5mm/164.2*71.8*32.7mm
Send inquiry

Product Parameters
Features:
1. High conversion efficiency (energy efficiency VI)
2. Protection: OCP, OVP, OTP
3. EMC regulatory certification
4. RoHS&REACH
5. Support customized power supply

Output:
Voltage 12.0-15.5V 15.6-23.0V 23.1-35.0V 35.1-44.0V 44.1-58.0V
Current 0.01-12.5A 0.01-9.50A 0.01-6.35A 0.01-4.30A 0.01-3.25A
Power max 150W 152W 152.4W 154.8W 156W



Safety approvals
GB4943.1-2011,GB8898- 2011,GB4706.1-2005,EN62368,IEC60950,EN61558,EN61347,K60950, J60950, J61558,UL62368,UL 60950, AS/NZS61558, AS/NZS60950,IS13252
EMC
GB17625.1-2012, GB/T9254 -2008,GB/T13837-2012,GB/T17625.1-2007,GB4343.1-2018, EN55032,EN55014, EN55024,EN61000,KN-32/35,FCC Part 15,AS/NZS CISPR-32, AS/NZS CISPR 14

DC connector


Can do constant current, constant voltage and turn signal indication (charger)
