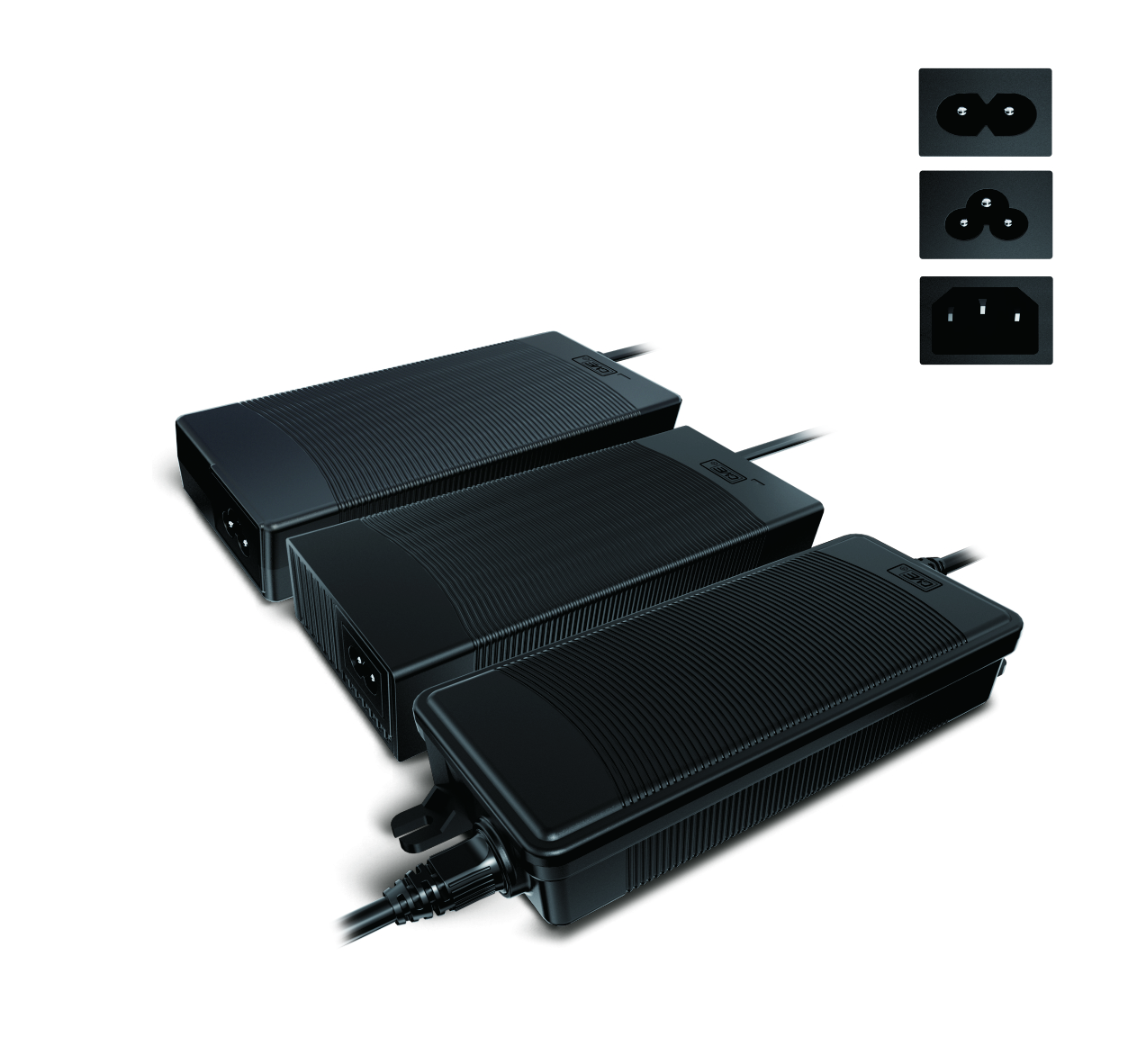

GVE-130W Charger-GM130/GE130
Input:
100V-240VAC 50/60Hz 2.5A

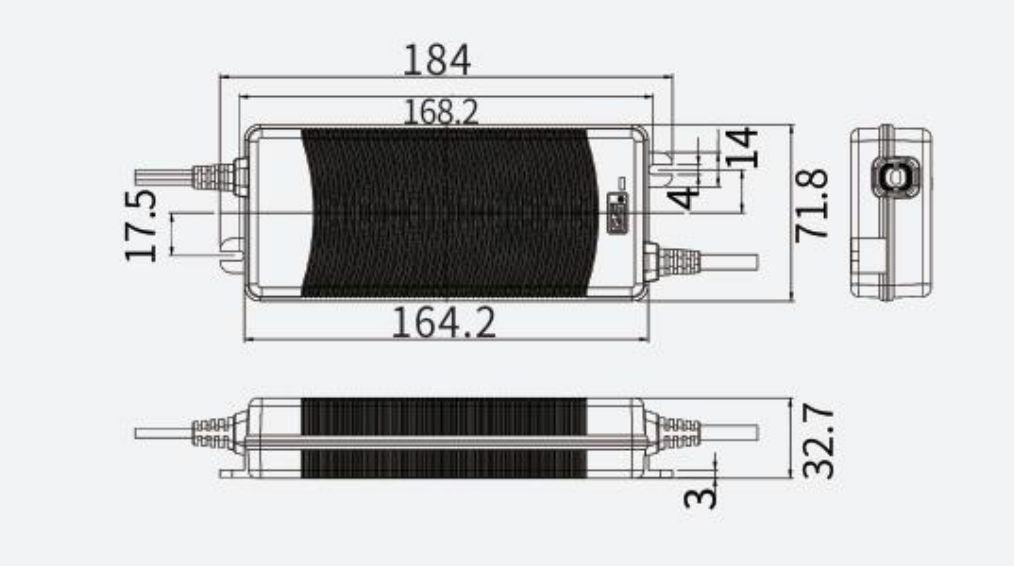

Dimension:
161*68.4*32.5mm/162.4*71.8*32.7mm
Send inquiry

Product Parameters
Features:
1. High conversion efficiency (energy efficiency VI)
2. Protection: OCP, OVP, OTP
3. EMC regulatory certification
4. RoHS&REACH
5. Support customized power supply

Output:
Voltage 12.0-15.9V 16.0-23.0V 23.1-35.0V 35.1-45.0V 45.1-58.0V
Current 0.01-10.0A 0.01-7.50A 0.01-5.25A 0.01-3.50A 0.01-2.63A
Power max 120W 123.5W 126W 126W 126.3W



Safety approvals
GB4943.1-2011,GB8898-2011,GB4706.1-2005,EN62368,IEC60950,EN61558,K60950,J60950,J61558, UL62368, UL60950,AS/NZS61558,AS/NZS60950,IS13252
EMC
GB17625.1 - 2012, GB/T9254- 2008, GB/T13837 -2 012,GB/T17625.1-2007,GB4343.1-2018,EN55032,EN55014,EN55024,EN61000,KN-32/35,FCC Part 15,AS/NZS CIS PR 32,AS/NZS CISPR 14

DC connector


Can do constant current, constant voltage and turn signal indication (charger)
