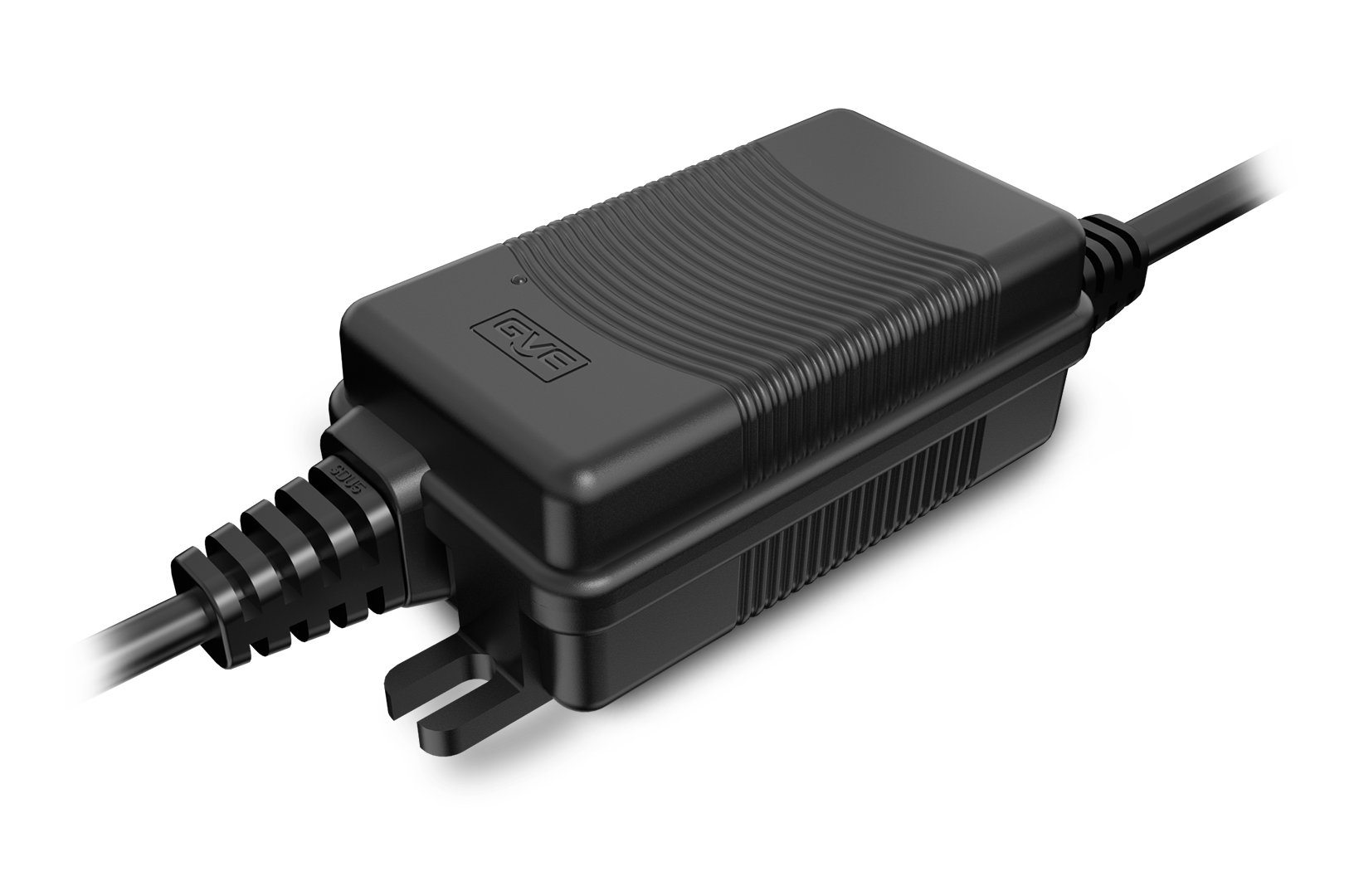

GVE-Waterproof Power Supply-GM12
Input:
100-240VAC 50/60Hz 0.5A

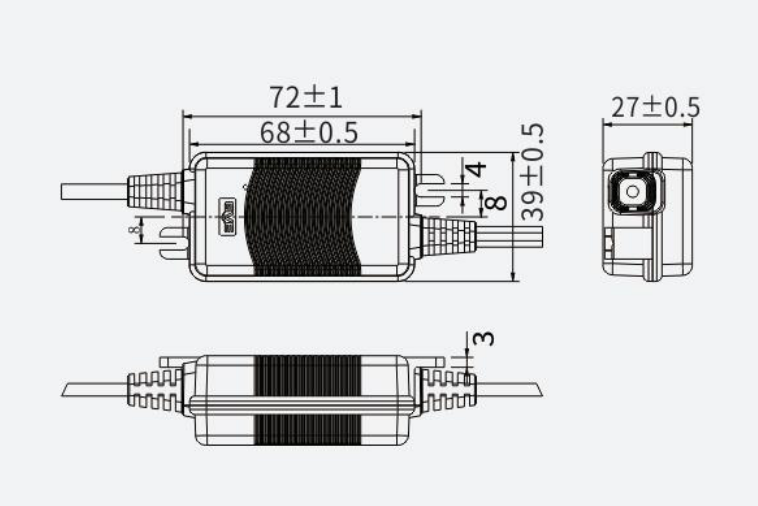

Dimension:
68*39*27mm
Send inquiry

Product Parameters
Features:
1. High conversion efficiency (energy efficiency VI)
2. Protection: OCP, OVP, OTP
3. EMC regulatory certification
4. RoHS&REACH
5. Support customized power supply

Output:
Voltage 3.2-6.5V 6.6-13.5V 13.6-28.0V
Current 0.01-2.0A 0.01-1.66A 0.01-0.85A
Power max 10W 12W 12W



Safety approvals:
GB4943.1-2011,GB8898-2011,GB4706.1-2005,GB19510.1-2009,EN61347
EMC:
GB17625.1-2012,GB/T9254-2008,GB/T13837-2012,GB/T17625.1-2007,GB434-3.1-2018,GB/T17743-2017,EN55015

DC connector:
